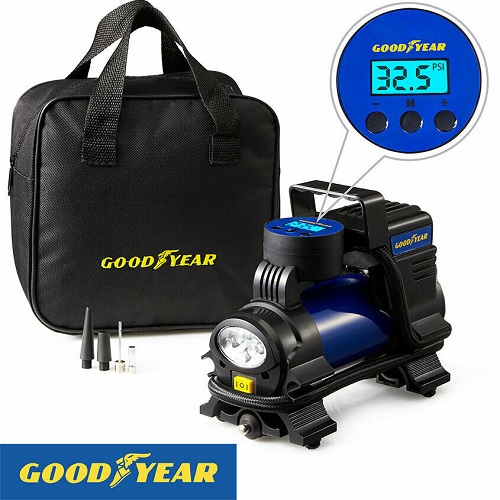

CONVENIENCE: Plugs directly into Cigarette Lighter Socket of your Vehicle with a built-in 3M cord. 12VDC 10~15 amps, 120~180W

MULTIPLE USES: Inflate tyres on cars, 4X4s, vans, motorbikes, bicycles, sedan and midsize SUV. PLEASE NOTE: Not Suitable for LT, HT and Truck Tires.
MORE THAN JUST CAR TYRES: Also includes adaptors for Sporting and camping equipment, balls, inflatables, air beds and more.
EASY TO READ: 4 Display Units: PSI, KPA, BAR, KG/CM
LED FLASHLIGHT: Ultra Bright LED Torch
PREVENT OVER INFLATION: Auto shut off feature when reaching the desired tyre pressure. Overheat protection shuts off automatically when overloading.


Specifications:

Working voltage:  DC12V
Rating power: 120W
Inflating Speed:  1.06 CFM
Min. Amp:  10 Amps
Maximum Amp:  15 Amps
LED flashlight:  Super Bright LED Torch
Display Units:  KPA, PSI, BAR, KG/CM



Maximum Working Pressure: 100 PSI

The power cable is 3m long and comes with a 15 amps fuse, and there is a backup fuse in the package.

Overheat protector will shut of the unit when it exceeds 167°F

Operating Instructions:

1. Make sure the power switch is at OFF position and the vehicle engine is running.
2. Remove the dust cap from the tire valve, and then attach the air chuck to the tire valve stem, and screw onto tire’s valve stem.
3. Plug the power cord into a 12V cigarette lighter socket.
4. Press (M) button to choose the display unit. (4 units available: PSI, KPA, BAR, KG/CM). Press (-) or (+) button to set the desired pressure, and then wait until it stops flashing.
5. Turn on the power switch. The compressor will automatically stop inflating once the desired pressure is reached.
6. When the desired pressure is reached, turn OFF the power.
7. Unscrew the valve connector, place the tire valve dust cap back to the tire & disconnect the power cord from a 12V cigarette lighter socket.
